AMD introduces the latest Ryzen? 2000 series processors to provide the computing power for gaming need. GIGABYTE's B450 series motherboards perfectly fit the latest AMD Ryzen? 2000 series processors' computing performance with more features and more control. Users can enjoy the benefits brought by AMD Ryzen? 2000 series processors.
GIGABYTE 400-series motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.
Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.?
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
With AORUS Motherboards, RGB Fusion 2.0 is even better with Digital LEDs.* RGB Fusion 2.0 offers users the option to control onboard RGB and external RGBW / Digital LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on AORUS Motherboards are now upgraded with Digital LED support. With external digital LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.
AORUS Gaming Motherboards will support either 5v or 12v digital LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Digital LEDs comes with 9 new patterns and various speed settings with more to come.
Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.
| CPU Socket | Socket AM4 |
| CPU Brand | AMD |
| Installed Processors (Max) | 0 (1) |
| Supported Processor Manufacturer | AMD |
| Supported Processors | AMD Ryzen? 2nd Generation AMD Ryzen? with Radeon? Vega Graphics AMD Athlon? with Radeon? Vega Graphics AMD Ryzen? 1st Generation |
| 64-bit Support | Yes |
| Socket | AM4 |

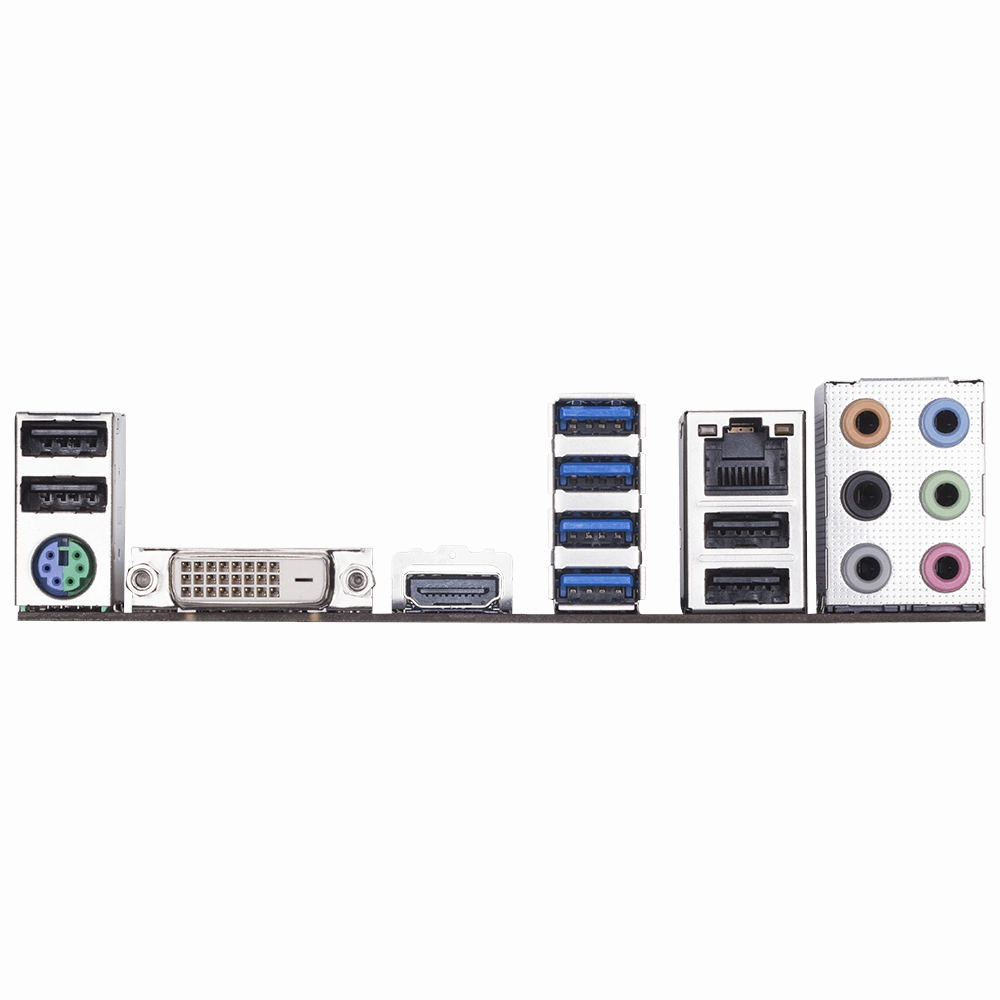

| USB Ports | 4 x USB 3.0 4 x USB 2.0 |
| HDMI Port | 1 x HDMI |
| Keyboard/Mouse Combo Port | 1 x PS/2 |
| RJ-45 Ports | 1 x RJ-45 |
| Digital Port | 1 x DVI-D |
| Audio Line In Ports | 1 x 3.5mm Jack |
| Audio Line Out Ports | 4 x 3.5mm Jacks |
| Microphone In Port | 1 x 3.5mm Jack |
| SATA Connectors | 6 x SATA III |
| USB Connectors | 1 x USB 3.0 1 x USB 2.0 |
| Front Panel Connectors | 1 x Front Panel 1 x Front Audio |
| Cooling Fan Support | 1 x CPU fan 3 x System fans |
| S/PDIF Connectors | 1 x S/PDIF Out |
| Serial Connectors | 1 x COM |
| TPM Header | 1 x TPM |
| Power Connector Port | 1 x 20 4-pin ATX 1 x 4 4-pin EPS |
| Other Connectors | 1 x M.2, Socket 3, M Key (Type 2242/2260/2280/22110) 1 x CPU LED/RGB LED header 1 x RGB LED header 2 x Addressable LED headers |
| Memory Bus Speed | 2933/2667/2400/2133 MHz |
| Memory Type | DDR4 |
| Maximum RAM | 64 GB |
| Memory Slot | 4 x DIMM |
| Chipset Manufacturer | AMD |
| Northbridge | B450 |
| RAID Supported | Yes |
| RAID Format | RAID 0, 1, 10 |
| SATA Supported | Yes |
| Number of PCI Express Slots | 1 x PCI Express 3.0 x16 1 x PCI Express 2.0 x16 (@ x4) 2 x PCI Express 2.0 x1 |
| Integrated Graphics Supported | Yes |
| Integrated Sound | Realtek? ALC892 |
| Integrated Network | Realtek? GbE |
| Network Speeds Supported | 10/100/1000 Mbps |
| Wireless LAN | No |
| Bluetooth | No |
| Operating Systems Supported | Microsoft Windows 10 64-bit |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Jumpers | 1 x Clear CMOS |
| Software Included (may be trial or restricted) | Norton? Internet Security (OEM version) Realtek? 8118 Gaming LAN Bandwidth Control Utility |
| SLi/Crossfire Features | Support for AMD Quad-GPU CrossFire? and 2-Way AMD CrossFire? technologies |
| Form Factor | ATX Motherboard |
| Width | 305 mm |
| Length | 235 mm |
| Addressable RGB | No |
| Firewire | No |
| Wireless Network | No |
| Socket(s) | AM4 |
| Memory Channel | Dual |
| On-board Audio Type | 7.1 |
| Number of SATA Ports | 6 port(s) |
| Number of USB Ports | 8 port(s) |
| SATA III Support | Yes |
| USB 3.0 Support | Yes |
| Multi GPU Support | ATi CrossFire |
| VGA Connection | No |
| DVI Connection | Yes |
| HDMI Connection | Yes |
| DisplayPort Connection | No |
| Motherboard Form Factor | ATX |
| Motherboard Power Connectors | 4 4-Pin |
| Motherboard Chipset | AMD B450 |
| Thunderbolt | No |

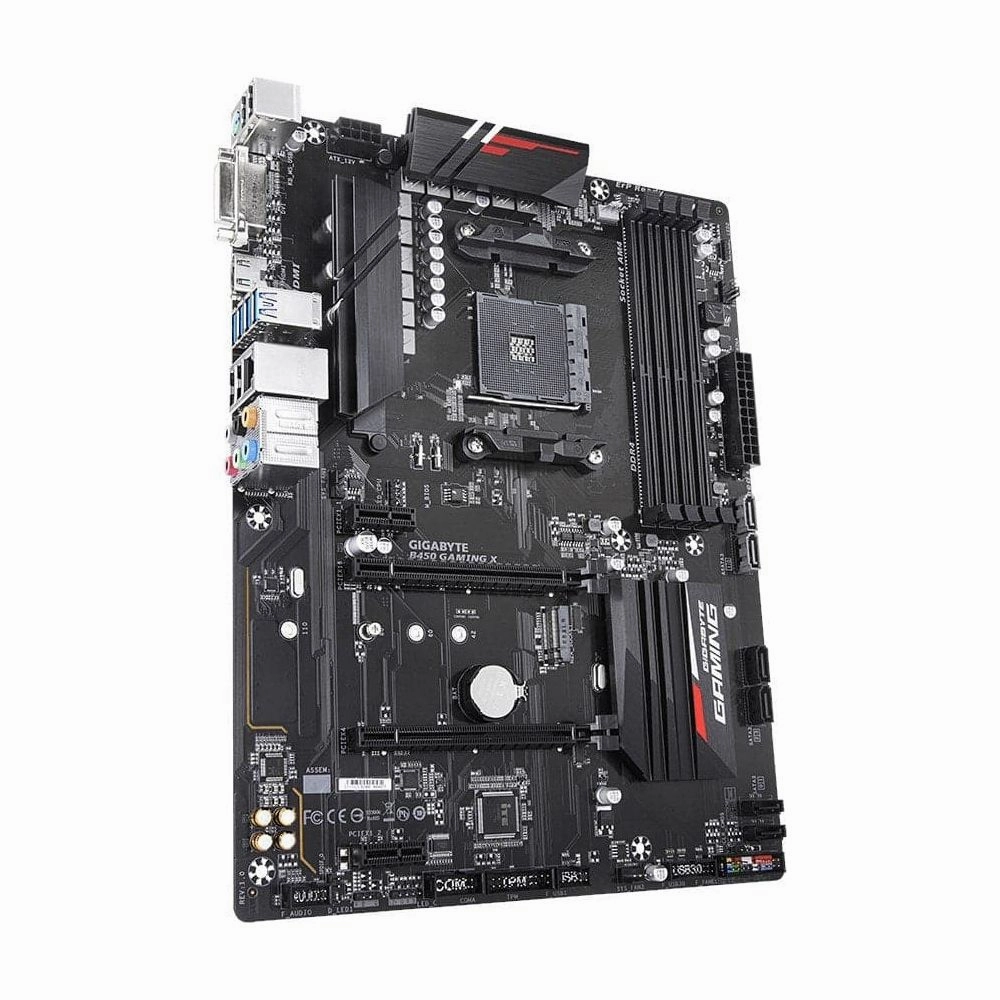

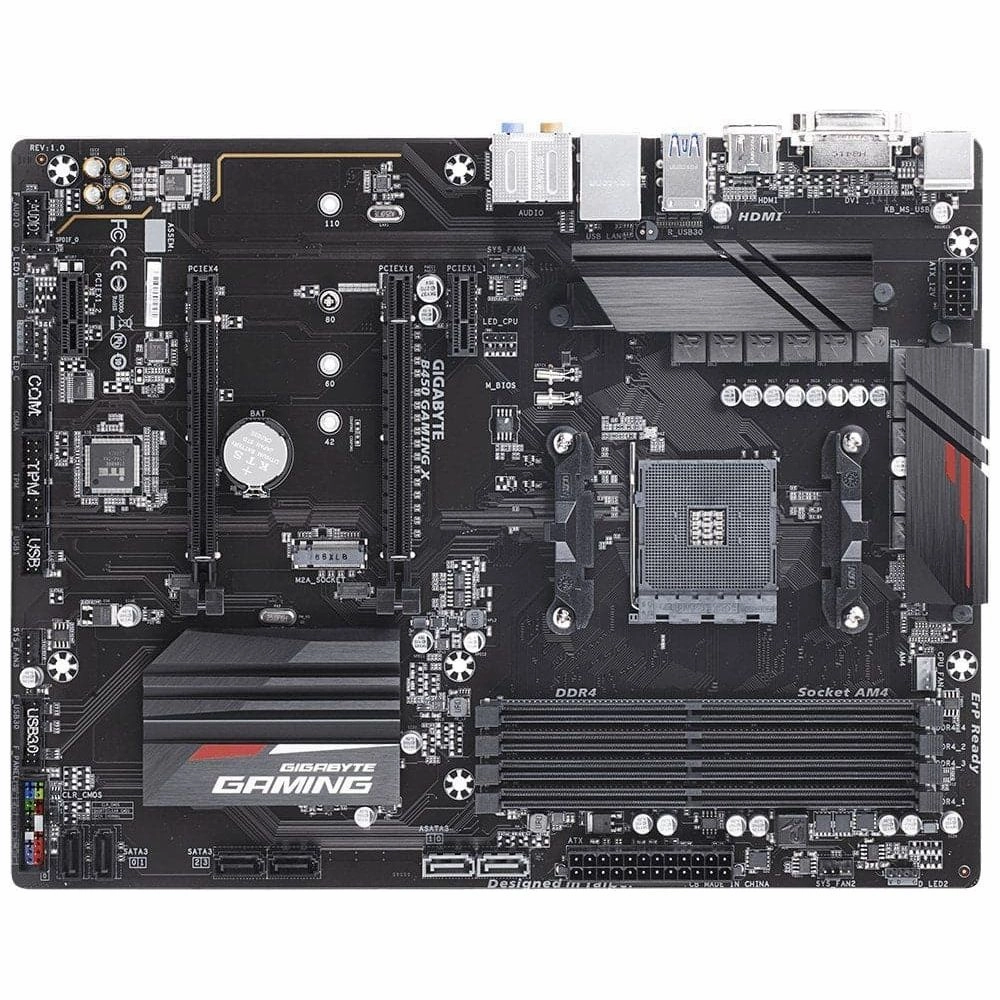

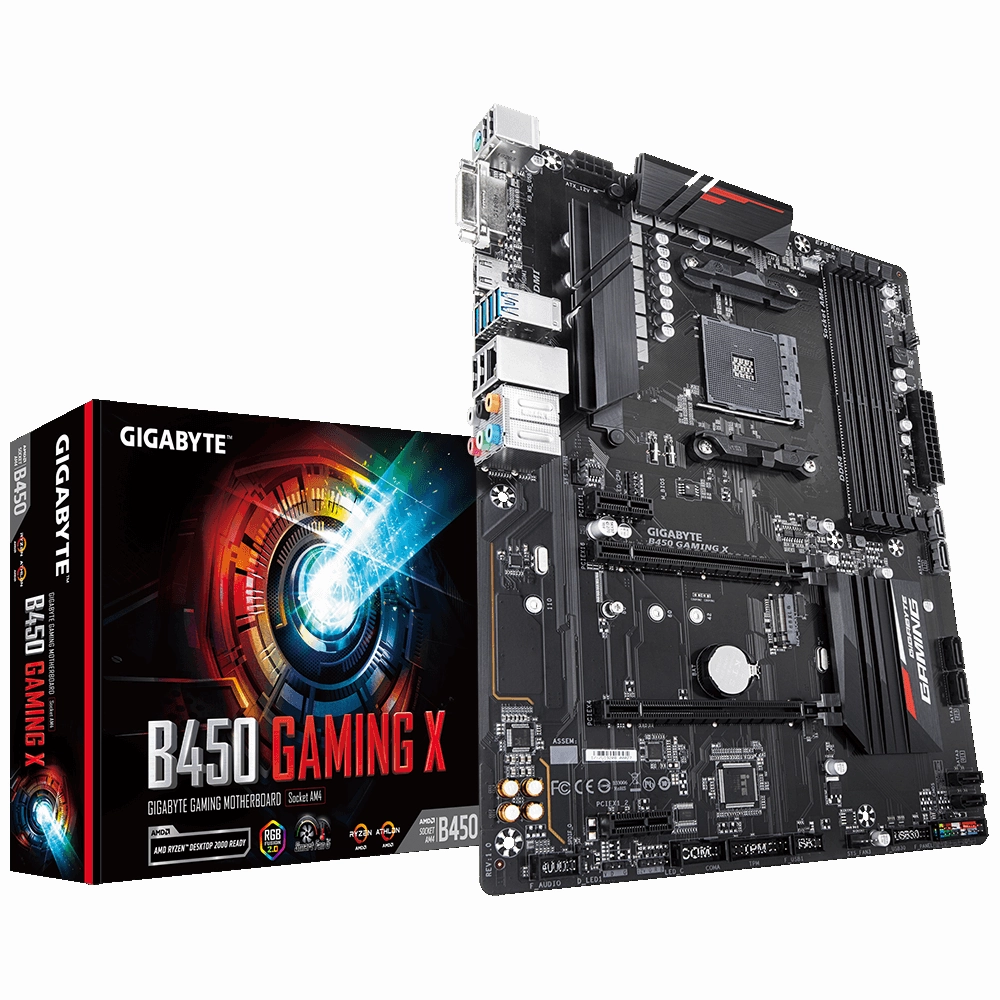

| Motherboard Model | Gigabyte B450 Gaming X |
| USB 3.1 Support | No |
| Internal USB3.0 Header | Yes |
| M.2 Support | Yes |
| On-board RGB Control | Gigabyte RGB Fusion |
| Skip Audio Test | No |
| RGB Header Type | Other |
