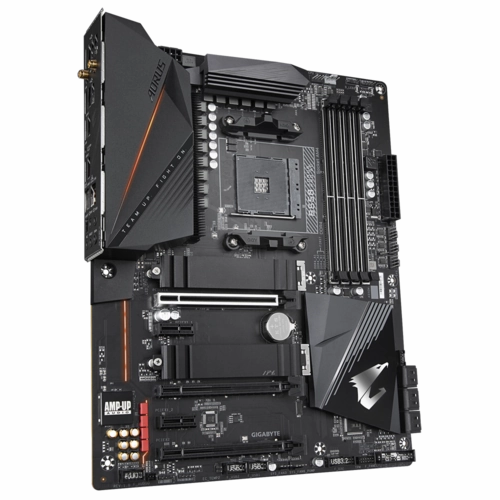

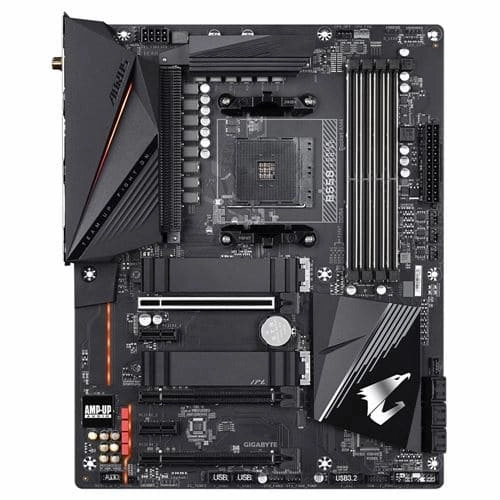

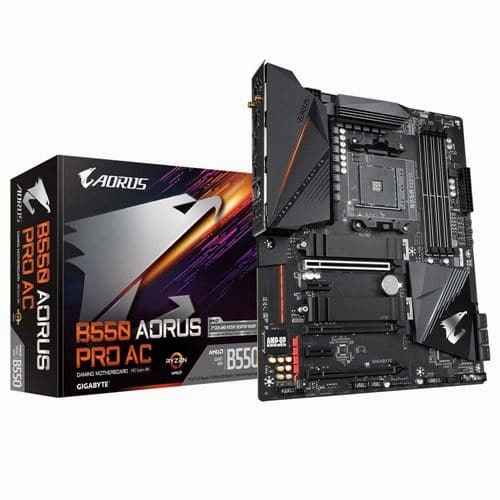

Gigabyte B550 AORUS Pro AC. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: 3rd Generation AMD Ryzen? 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen? 7, 3rd.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum graphics card memory: 16000 MB, Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

In the dark, starless night, the falcon strikes fear into the heart of its prey. Even with minimal visibility, the falcon pinpoints its prey and patiently anticipates the perfect moment to swoop in for the kill. The falcon with its laser sharp gaze dominates the darkness of night in the same manner that AORUS Core Lighting illuminates the vast AORUS ecosystem.

?

Features:

• Supports AMD Ryzen? 5000 Series/ Ryzen? 5000 G-Series/ Ryzen? 4000 G-Series and Ryzen? 3000 Series Processors
• Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
• True 12 2 Phases Digital VRM Solution with 50A DrMOS
• Advanced Thermal Design with Fins-Array Heatsink and Direct Touch Heatpipe
• Ultra Durable? PCIe 4.0 Ready x16 Slot
• Dual Ultra-Fast?NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards
• Onboard Intel^??Dual Band 802.11ac & BT 4.2 Wireless with AORUS Antenna
• AMP-UP Audio with ALC1220-VB and WIMA Capacitors for Rear 120dB SNR
• Blazing Fast 2.5GbE LAN with Bandwidth Management
• USB 3.2 Gen2 Type-C? & HDMI Support
• RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
• Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
• Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
• Pre-installed IO Shield for Easy and Quick Installation

Specification:

• CPU
  1. AMD Socket AM4, support for : AMD Ryzen? 5000 Series/ Ryzen? 5000 G-Series/ Ryzen? 4000 G-Series and Ryzen? 3000 Series Processors
• Chipset
  1. AMD B550
• Memory
  1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  2. Support for DDR4 5400(O.C.) / 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered?DIMM 1Rx8/2Rx8 memory modules*
     * ECC memory (ECC mode) support varies by CPU
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
• Onboard Graphics
  Integrated Graphics Processor:

  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
     Support for HDMI 2.1 version, HDCP 2.3, and HDR. Maximum shared memory of 16 GB
• Audio
  1. Realtek^??ALC1220-VB codec
     * The back panel line out jack supports DSD audio.
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
• LAN
  1. Realtek^??2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
• Wireless Communication module
  ? ? ? ?Wi-Fi module

  1. WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
  2. BLUETOOTH 4.2
  3. Support for 11ac wireless standard and up to 433 Mbps data rate
     Actual data rate may vary depending on environment and equipment.
• Expansion Slots
  1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

  1. AMD Ryzen? 5000 Series and Ryzen? 3000 Series Processors support PCIe 4.0 x16 mode
  2. AMD Ryzen? Ryzen? 5000 G-Series and Ryzen? 4000 G-Series Processors support PCIe 3.0 x16 mode
     * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

  1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:

  1. Supporting PCIe 3.0 x4 mode
     * The M2B_SB connector shares bandwidth with the PCIEX4 slot. The PCIEX4 slot will become unavailable when an SSD is installed in the M2B_SB connectors.

  1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:

  1. Supporting PCIe 3.0 x2 mode
     * The PCIEX2 slot shares bandwidth with the SATA3 4, 5 connectors. The PCIEX2 slot will become unavailable when a device is installed in the SATA3 4 or SATA3 5 connector.

  2 x PCI Express x1 slots
• Storage Interface
  1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:

  1. AMD Ryzen? 5000 Series and Ryzen? 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
  2. AMD Ryzen? Ryzen? 5000 G-Series and Ryzen? 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs

  1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:

  1. support PCIe 3.0 x4/x2 SSDs

  6 x SATA 6Gb/s connectors, integrated in the Chipset:

  1. Support for RAID 0, RAID 1, and RAID 10
• USB
  CPU:

  1. 3 x USB 3.2 Gen 1 ports on the back panel
  2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

  Chipset:

  1. 1 x USB Type-C? port on the back panel, with USB 3.2 Gen 2 support
  2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  3. 2 x USB 3.2 Gen 1 ports available through the internal USB header
  4. 2 x USB 2.0/1.1 ports on the back panel

  Chipset 2 USB 2.0 Hubs:

  1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
• Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 2 x M.2 Socket 3 connectors
  4. 6 x SATA 6Gb/s connectors
  5. 1 x CPU fan header
  6. 1 x water cooling CPU fan header
  7. 4 x system fan headers
  8. 2 x system fan/water cooling pump headers
  9. 1 x CPU cooler LED strip/RGB LED strip header
  10. 2 x addressable LED strip headers
  11. 2 x RGB LED strip headers
  12. 1 x front panel header
  13. 1 x front panel audio header
  14. 1 x USB 3.2 Gen 1 header
  15. 2 x USB 2.0/1.1 headers
  16. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  17. 2 x temperature sensor headers
  18. 1 x Thunderbolt? add-in card connector
  19. 1 x Clear CMOS jumper
  20. 1 x Thunderbolt header

  All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

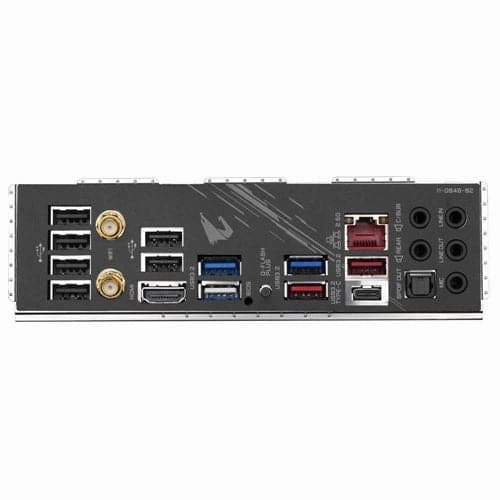

• Back Panel Connectors
  1. 1 x HDMI port
  2. 2 x SMA antenna connectors (1T1R)
  3. 3 x USB 3.2 Gen 1 ports
  4. 1 x USB Type-C? port, with USB 3.2 Gen 2 support
  5. 2 x USB 3.2 Gen 2 Type-A ports (red)
  6. 6 x USB 2.0/1.1 ports
  7. 1 x Q-Flash Plus button
  8. 1 x RJ-45 port
  9. 1 x optical S/PDIF Out connector
  10. 5 x audio jacks
• I/O Controller
  1. iTE^??I/O Controller Chip
• H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Overheating warning
  6. Fan fail warning
  7. Fan speed control
     * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
• BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
  1. Support for APP Center
     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
     @BIOS
     EasyTune
     Fast Boot
     Game Boost
     ON/OFF Charge
     RGB Fusion
     Smart Backup
     System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
• Bundled Software
  1. Norton^??Internet Security (OEM version)
  2. XSplit Gamecaster Broadcaster (12 months license)
  3. Realtek^??8125 Gaming LAN Bandwidth Control Utility
• Operating System
  1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bit
• Form Factor
  1. ATX Form Factor; 30.5cm x 24.4cm
